PV Logic Rigid Solar Panel Kit with Charge Controller

Mono High Density Campervan Solar Panel Roof and Deck Top Kit

The PV Logic Rigid Solar Panel Kit with Charge Controller is available in different wattage options to suit your needs, including 100W, 125W, 150W and 200W. This Solar Panel kits are ideal for remote off-grid travel for creating self-sufficient motorhomes, marine narrow boats, and campervans. Energy generation is maximised on the Rigid Solar Battery Kit because it includes bypass diodes to minimise the effect of shadows, maximising energy generation. Suitable for powering a range of high power consumption devices including 12V TVs and 240V appliances (when used with an inverter). Additionally, this Solar Panel Kit provides a continuous trickle feed maintain and extends to battery life of any 12V battery.

These Solar Panel Kits come with a 10A or 20A Charge Controller as standard. The 10A and 20A PWM Charge Controllers are capable of charging 12V and 24V single or dual batteries.

Upgrade to the MPPT Pro for increased solar yield by up to 20% compared to the included 10A battery controller. The MPPT Pro artificially modifies the voltage from the solar panel to match any battery requirements, meaning that this adapts to any weather conditions to deliver maximum power with minimum electrical loss. Upgrade to the 15A MPPT Pro Charge Controller for rapid solar charging. The 15A MPPT Pro can charge dual batteries, the 20A and 30A Pro Plus models charge a single battery. The MPPT chargers come with a downloadable mobile app to monitor the performance of your solar panel so you can check on your leisure battery remotely and easily just from your phone.

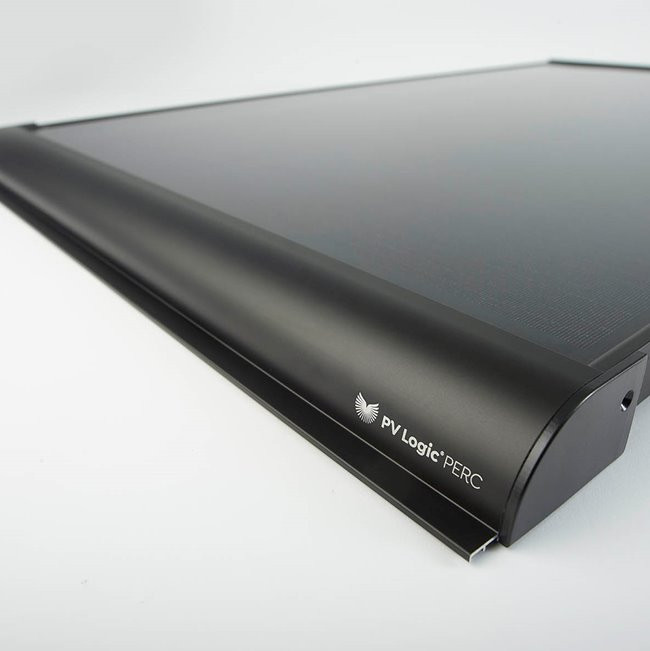

Additionally, you can custom your installation by choosing from the selection of fitting brackets including Premium Aero Brackets or ABS Corner Brackets. Select the right installation brackets to suit the needs of your campervan, motorhome, or boat!

Rigid Solar Panel Key Features:

• 10A or 20A Dual Battery Charger included as standard, or upgrade to the 15A, 20A or 30A Charge Controllers

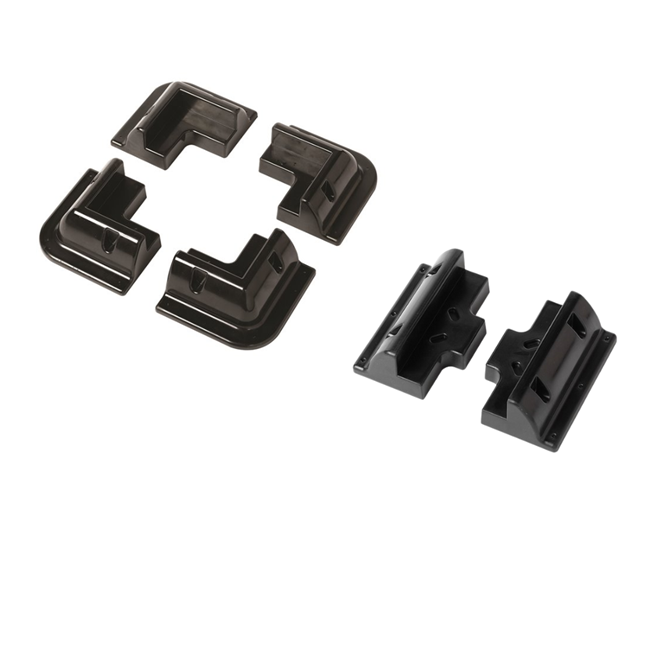

• A choice of installation brackets available including Premium Aero Brackets, or ABS Corner Brackets
• Water resistant and robust construction for outdoor use
• In built diode protects against battery discharge
• Tough and robust
• 10-year panel warranty

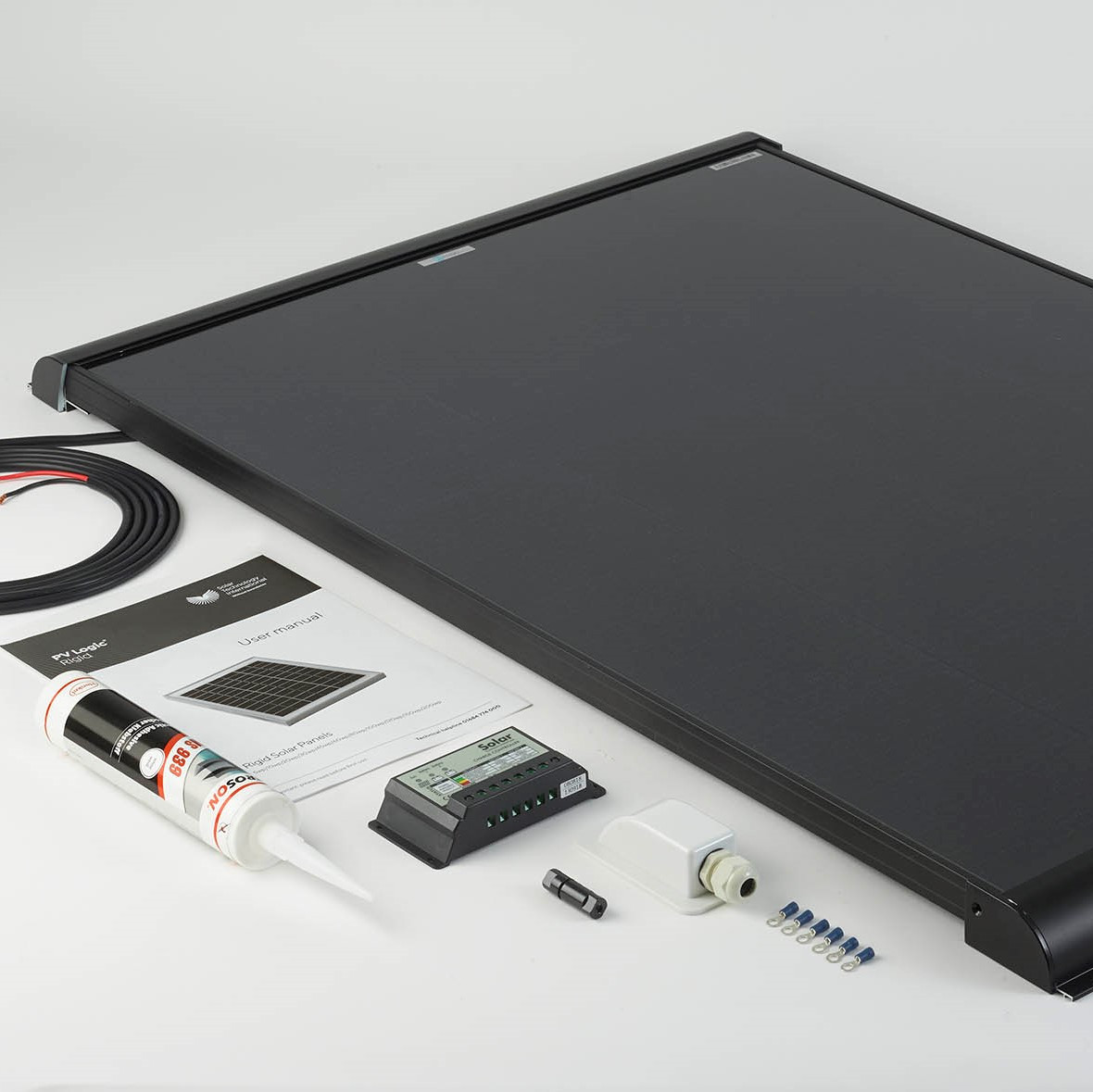

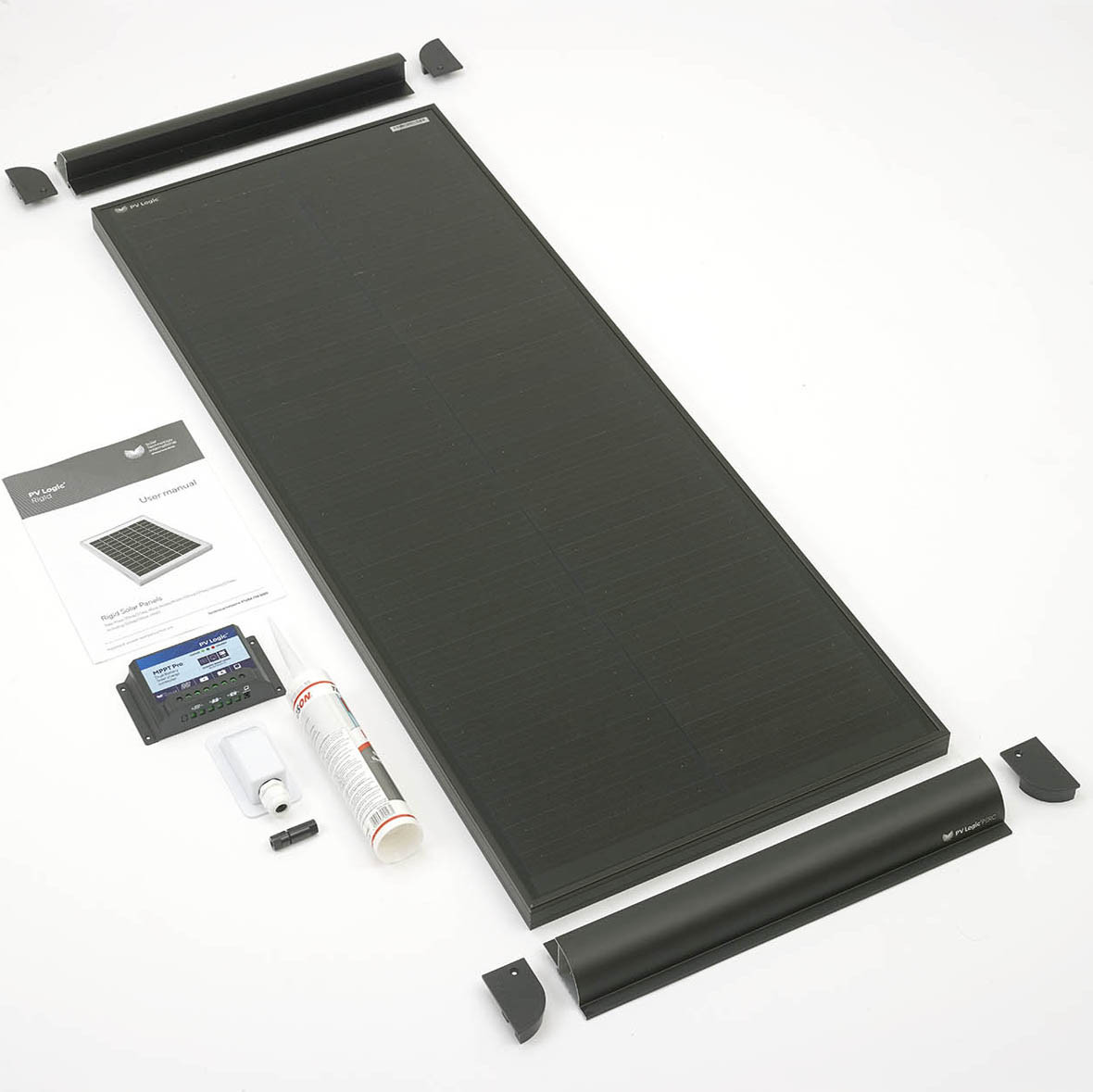

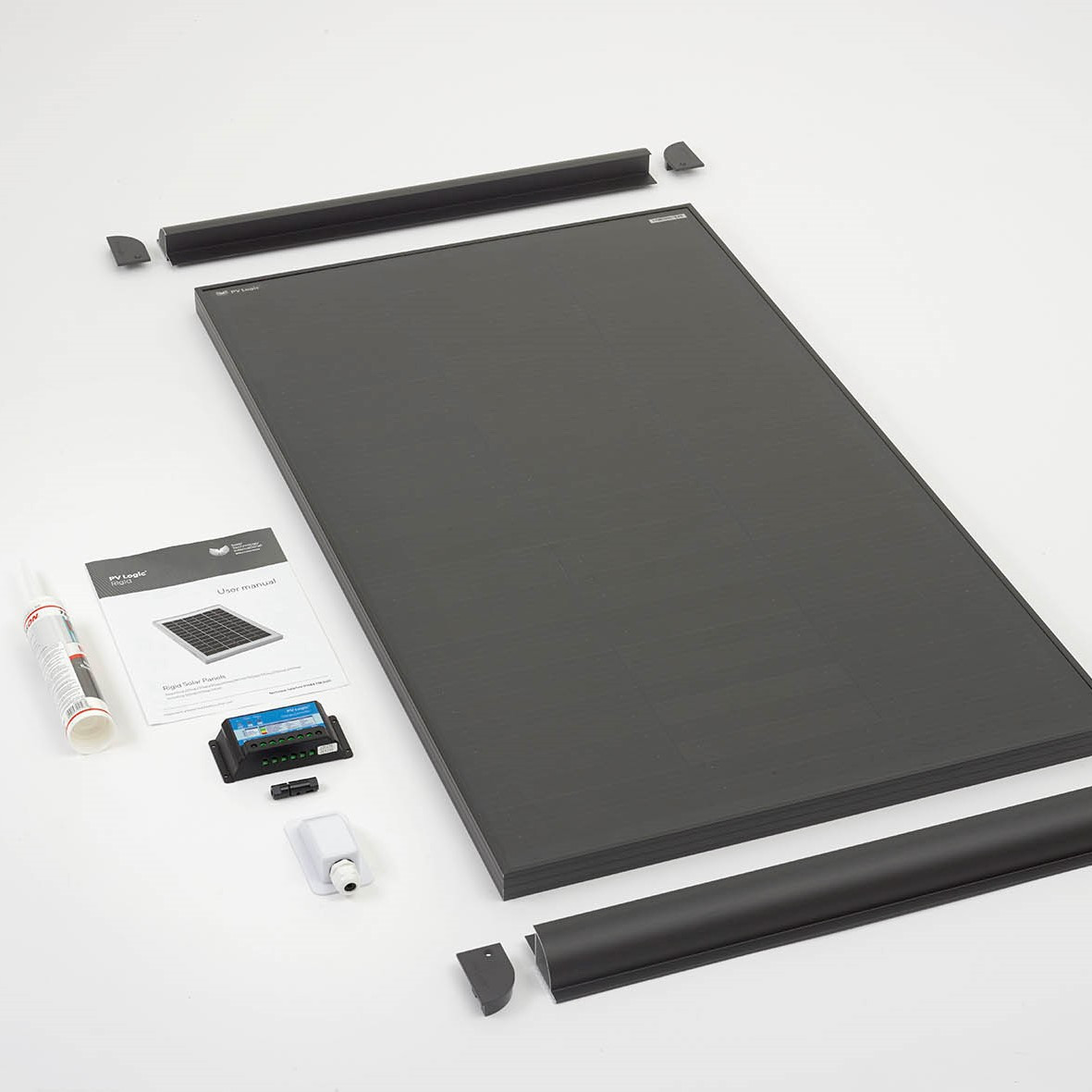

Kit Contents:

• 1 x 100W, 125W, 150W or 200W MHD solar panel with 4m cable (or 2 x 1m cable with MC4 connectors for 200W kit only)

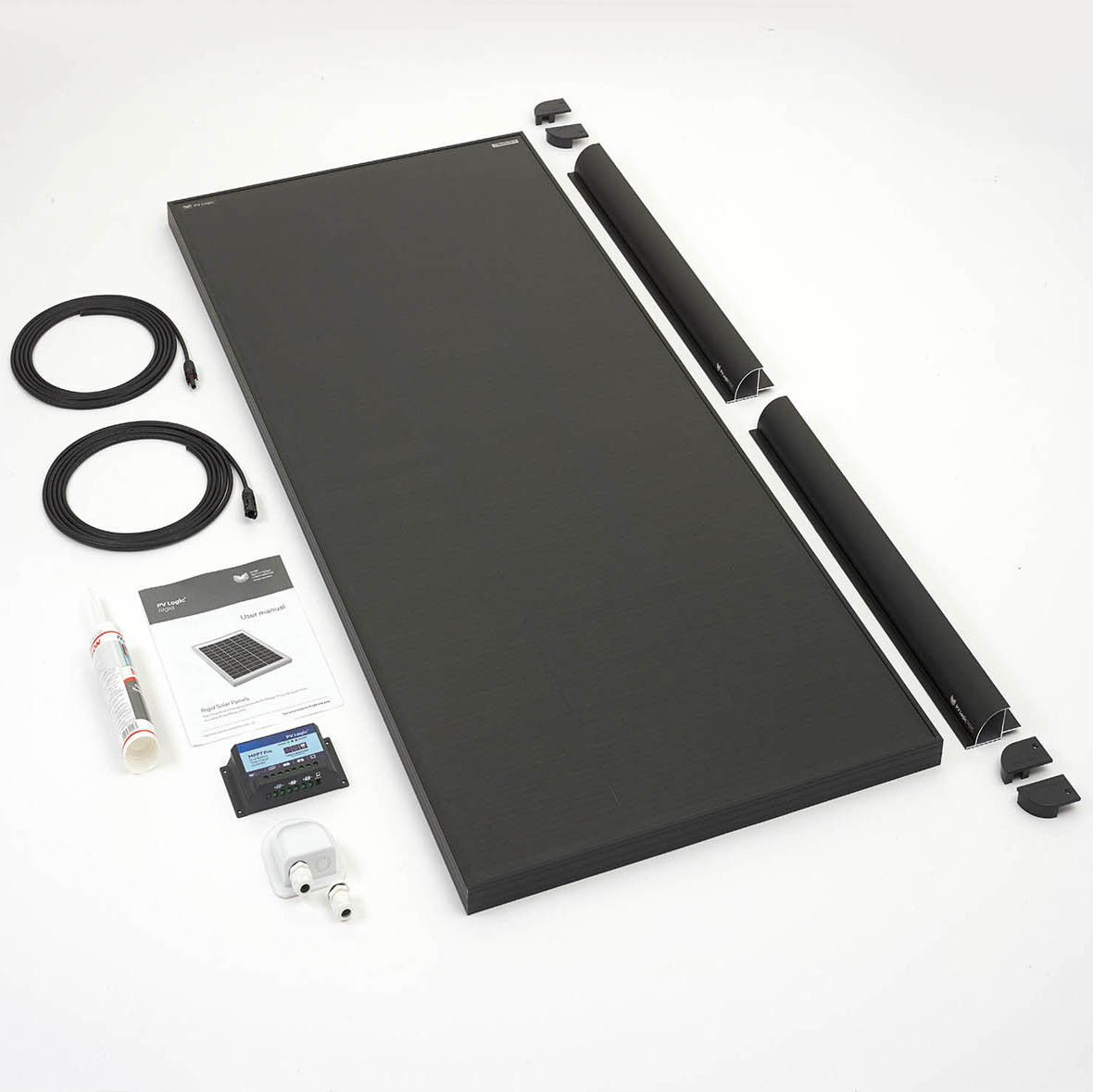

• 1 x 200W MHD solar panel with 2 x 1m cable with MC4 connectors
• 1 x 10A or 20A charge controller (or upgrade to 15A, 20A or 30A MPPT charge controller)
• 1 x premium aero bracket fitting kit (or opt for ABS corner brackets)
• 1 x cable feed gland
• 1 x tube elastic adhesive
• 1 x user manual

Technical Specifications:

Downloads:

100w Solar Panel Kit		125w Solar Panel Kit		150w Solar Panel Kit		200w Solar Panel Kit
