Dometic S7 Caravan Campervan Windows And Pleated Blinds

4 Customer Reviews Write a Review
£239.00 (Inc. VAT )
£199.17 (Ex. VAT )
SKU:
9104116042-
Availability:
#Special Order - 7 to 10 working days
Shipping (T&Cs Apply):
Shipping & Returns Policy Details

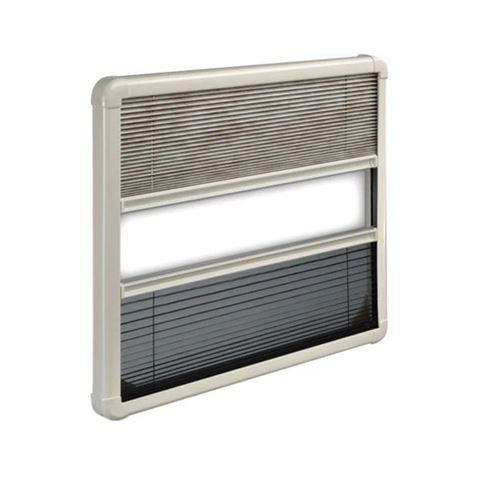

Dometic S7P Hinged Windows And Pleated Blinds

Overview

The Dometic S7P hinged windows are a powder coated aluminium framed window, ideal for panel van campervan conversions and as replacements in your motorhome or caravan.

Curved frame explained

Many campervans have side walls which have a slight curve running top to bottom, the Dometic S7 curved frame window matches the curve of your vans walls.

Lightweight yet premium

Specifically designed to reduce weight and to provide excellent insulation, whilst providing a high grade surface finish, the S7P hinged windows from Dometic are practical for use in you campervan motorhome or caravan.

Unique design system

The unique design of the Dometic S7P windows, combined with an optional matching pleated blind system, make the S7P windows a genuine alternative to polyurethane windows in your campervan caravan or motorhome. The optional pleated blinds also incorporate a fly screen for use in the summer!

Dometic S7P Window & Pleated Blind Features:

  • Powder coated profiles for excellent insulation
  • Multi-locking system provides protection from intruders
  • Double dark tinted acrylic glazing
  • Curvature radius of 5000mm
  • For walls 22-43mm thickness
  • Aluminium weight reducing frames
  • Optional pleated blinds made to measure
  • Optional pleated blinds include flyscreen

Window Size Options

Size WxH (mm)
Overall WxH (mm)
Space WxH (mm)
Clearance WxH (mm)
280x380
308x408
280x380
230x330
490x500
518x528
490x500
440x450
560x465
588x493
560x465
510x415
700x510
728x538
700x510
650x460
750x465
778x493
750x465
700x415
818x315
843x343
818x315
768x265
960x450
988x478
960x450
910x400
985x465
1013x493
985x465
935x415


Pleated Blind Size Options

Size WxH (mm)
Window Size WxH (mm)
233x352
280x380
443x472
490x500
513x437
560x465
653x482
700x510
703x437
750x465
771x287
818x315
913x422
960x450
938x437
985x465

 Note - Customer return 653x482 blind also available. Comes with manual & screws. Corner caps missing from frame. £225 - contact us for details, quoting JC-SP-918





Installation Manual


Technical Specifications:

fbt-product:
/caravan-motorhome-campervan/dometic/s7p-windows/fixing-installation-kit/
fbt-product:
/caravan-motorhome/sikaflex-221-caravan-boat-sealant-adhesive-300ml/
Write a Review
  • Dometic S7 Windows
    4

    Posted by cj101@gmx.com on 3rd Jul 2021

    Easily the best looking windows on the market, and designed to fit the curved side of a panel van, and they sit very flush. The matching blinds are also good quality, with slick aluminum frames.
    The only reason for not giving 5 stars is that they are much harder to fit than the S4's, and much more expensive too.

  • Not easy but Professional finish
    5

    Posted by Gordon on 22nd Jan 2020

    Just installed the first of these in my Peugeot Boxer campervan conversion. Scary job using a 160mm hole saw but provides perfect contour for the window. Drilled 4 large corner holes at accurate centres and the straight lines in between with a jigsaw. Was tempted to fit the straight S4 windows but glad I went with the S7. The curve is a perfect match for the van’s profile. The wooden spacer frame inside has also to be curved but the end result is superb. Haven’t fitted the blinds yet and still another window to fit.

  • Great product and service from these guys
    5

    Posted by Sunnycampers on 21st Jun 2019

    Had these before in an Autotrail & Hymer, great as black out blinds and fly screen for keeping the mossies out. not installed yet, but looking forward to enjoying the evenings with a chilled breeze

  • High Quality inside and out.
    4

    Posted by John S on 10th Apr 2019

    Great looking product and easy to install. Fair to note I was installing this with a decent wall thickness but I does mention you will need to pack out if you only have a thin panel to install on. I also ordered the blinds to go with and the instructions show that they can be screwed directly to the window but none of mine have been pre drilled. not a big issue but still annoying. Once install they look very sexy but they do now cut a lot of light so the tinting was a little darker than I was expecting! Otherwise very happy.
