Adventurer (THC) Curved Frame Top Hung Hinged Low Profile Campervan Window

1 Customer Review Write a Review
£269.00 (Inc. VAT )
£224.17 (Ex. VAT )
Shipping (T&Cs Apply):
Shipping & Returns Policy Details

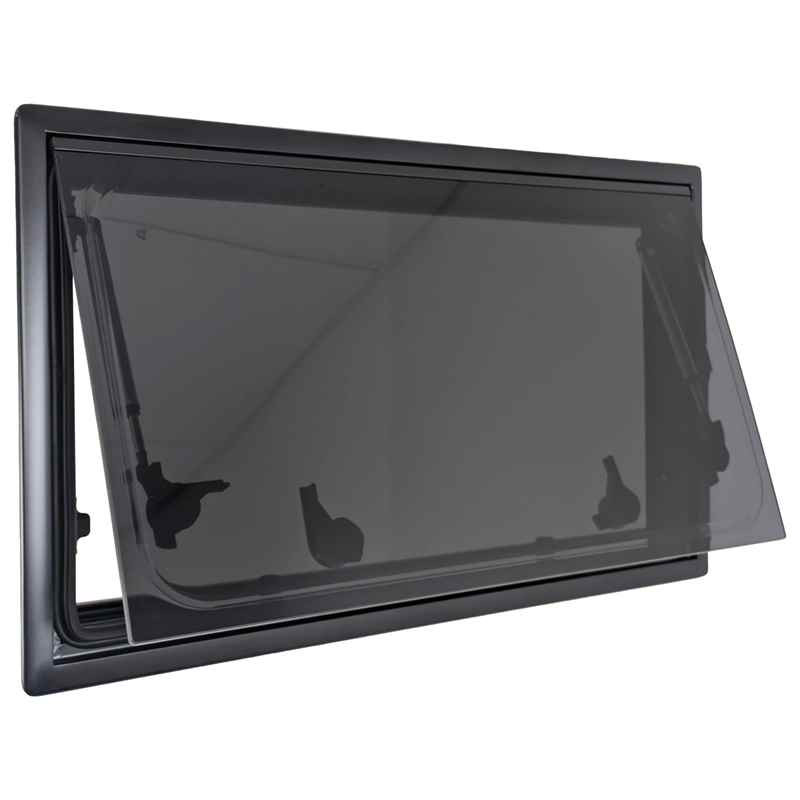

Adventurer (THC) Curved Radius Frame Top Hinged Campervan Windows

Black Aluminium Curved Frame Low Profile Campervan Window

Introducing our new collection of Adventurer Curved Campervan Top Hung Windows, crafted to seamlessly blend with the contours of your van.

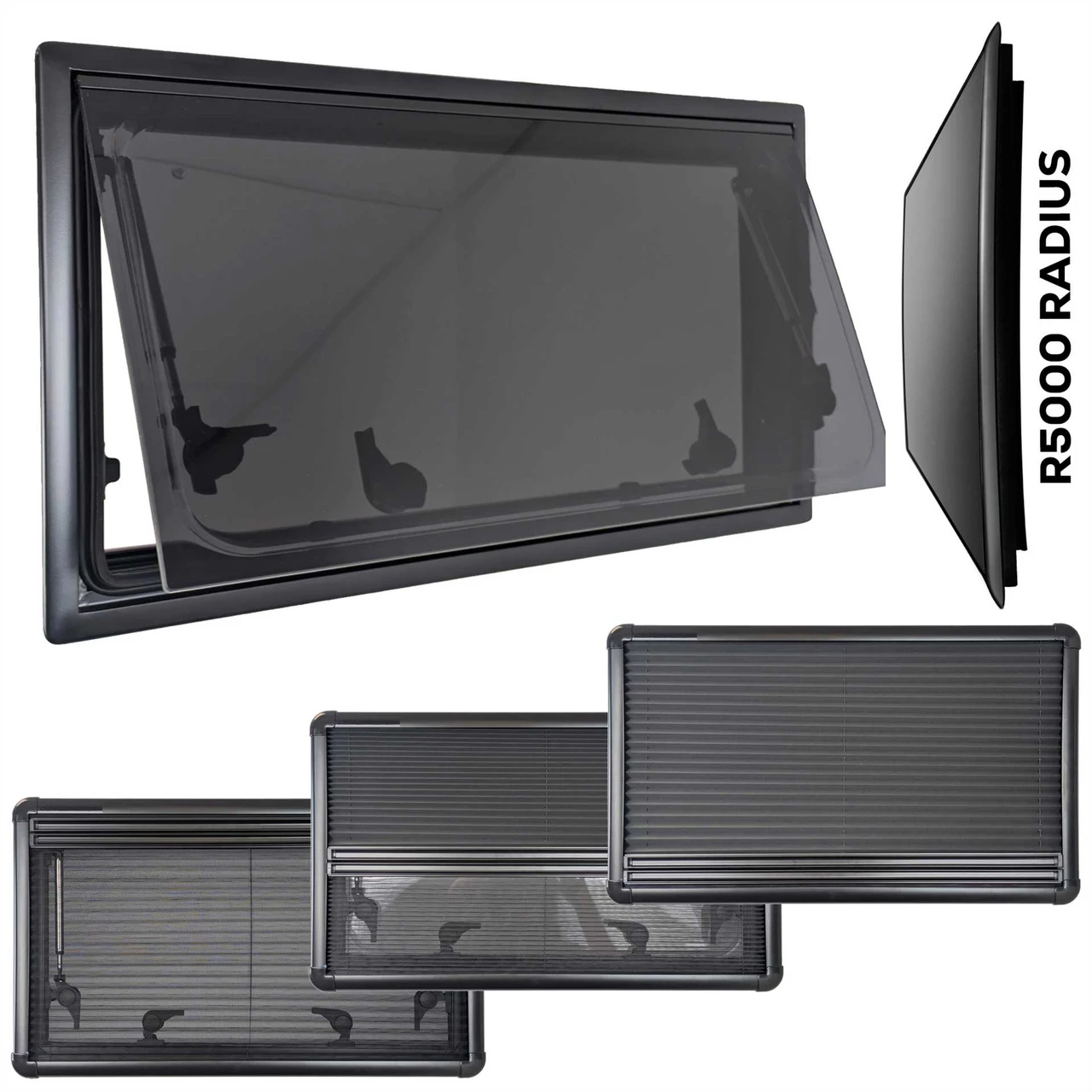

Curved frame explained

Many campervans and van conversions have side walls which have a slight curve running top to bottom, the Adventurer curved frame window matches the curve of your vans walls with a radius.

Practical and Stylish

These windows feature a sleek aluminium frame and are fitted with high-quality, tinted double glazed UV resistant acrylic, ensuring both durability and optimal protection against harmful UV rays and privacy. Available in various sizes, our curved campervan windows cater to your needs.  The Adventurer curved campervan windows prioritise stability and durability by incorporating an aluminium frame and stainless steel strut rods (with the exception of the 818 x 315mm version which comes with plastic struts). These enhanced features ensure a robust structure and reliable performance for your campervan adventures.

Privacy is key

With a tinted double glazed window and pleated blind and flyscreen within a PVC frame, the Adventurer Curved Frame low profile window adds privacy and helps to keep light out. The flyscreen also helps to provide airflow yet keep bugs out.

Easy installation

A window mounting frame which follows the curvature of the campervan wall with a thickness of 25-40mm makes for easy installation on most vehicles and a wide range of window sizes in a stylish black colour will compliment most colour schemes well.  It is suggested that a timber frame is bonded to the inside of the vehicle to add rigidity to the van's sides. The timber fame can be built up from thinner strips of ply to follow the curve of the campervan's sides.

Adventurer Curved Top Hung Hinged Windows Specifications

  • Aluminium alloy flat frame finished in black
  • Double glazed acrylic window
  • UV resistant
  • Vertical Curvature radius of 5000mm
  • Double stainless steel struts (with the exception of 818 x315 frame)
  • Two handle closures
  • Pleated blind and fly screen with PVC frame
  • Wall thickness mounting size: 25-40mm frame
  • Suitable for caravan motorhome van conversion or campervan

Adventurer Curved Top Hung Hinged Windows Sizes

Cutout Size (mm) Overall Size (mm) Blind Overall Size (mm)
490 x 500 517 x 527 518 x 528
500 x 300 527 x 327 528 x 328
700 x 400 727 x 427 728 x 428
818 x 315 845 x 342 846 x 343
900 x 500 927 x 527 928 x 528
960 x 450 987 x 477 988 x 478
985 x 465 1012 x 492 1013 x 493
1000 x 500 1027 x 527 1028 x 528

Technical Specifications:

fbt-product:
/caravan-motorhome/sikaflex-221-caravan-boat-sealant-adhesive-300ml/
Write a Review
  • Adventurer curved window
    4

    Posted by Darrel on 8th Nov 2024

    Next day delivery, spot on thanks.
    I purchased the square cornered, curved, windows, to suit the slight curve of my Boxer van panel.
    The curved windows look and feel good quality. Not cheap though.
    Tip for you all; I made a jig out of some mdf from the inside of my van panel curve before I cut it out & shaped my wooden frame to suit this, to prevent any distortion of my van panel on installation. Thickness of my frame was 27mm x 45mm. Fixed using black sikaflex and 20mm s/s screws, not the 15mm supplied.
    I don’t know why the blind is curved it doesn’t need to be really, I’m fitting it onto the other side of my wooden frame which is flat, I wasn’t going to curve both sides, it should pull up fine anyway.
    I’m pleased with them.
