Astral Victoria Plus New Generation Swimming Pool Pump
- SKU:
- Victoria
- Availability:
- New generation Astral pool pumps are sent on a next working day carrier!
- Shipping (T&Cs Apply):
Astral Victoria Plus New Generation Swimming Pool Pump
A replacement for the popular Sprint, Victoria and Victoria Plus pool pumps
The Astral Victoria Plus New Generation Swimming Pool Pump has been introduced with the core aim of providing better support for the pump and the motor as required with lower noise levels, these Astral new generation pool pumps are suitable for both commercial and domestic use, delivering a consistent high performance all the time, every time, and features a sturdy design that guarantees it for endurance.
Quiet running
Amongst its many features and capabilities are a user friendly lid locking nut, rubber paddings to substantially reduce noise levels, a generously sized strainer basket (5 litre capacity) and IP-55 motor protection.
Complete with imperial & metric fittings
The Astral Victoria Plus Swimming Pool Pump also comes complete with metric and imperial connections, as well as a prefilter cover and features metal parts built from durable stainless steel.
See the video below
Other Features
- Flow rates give for 8M head at 1/2 HP and 10 head from 3/4 onwards. 3'000 rpm.
- Low noise levels: between 61-70 dBA
- The Astral Victoria Plus New Generation pump was formerly the Astral Victoria, Victoria Plus and also the Astral Sprint.
Please note that the baseplate differs slightly to the Victoria plus but pipe connections are the same
Please check the guide below for the Single (1) and Three Phase (3) Astral Victoria Plus New Generation Swimming Pool Pumps to figure out the best option for your requirements.
Prior to checkout simply use the dropdown box at the top of the page to pick your option.
Single Phase
Code |
Flow (m³/hr) |
Phase |
Horsepower (HP) |
Kw |
Astral-65557
|
10
|
1
|
0.5HP
|
0.43
|
Astral-65560
|
11
|
1
|
0.75HP
|
0.61
|
Astral-65562
|
16
|
1
|
1HP
|
0.78
|
Astral-65564
|
21.5
|
1
|
1.5HP
|
1.1
|
Astral-65566
|
26
|
1
|
2HP
|
1.5
|
Astral-65569
|
34
|
1
|
3HP
|
2.2
|
Three Phase
Code |
Flow (m³/hr) |
Phase |
Horsepower (HP) |
Kw |
Astral-65558
|
10
|
3
|
0.5HP
|
0.43
|
Astral-65561
|
11
|
3
|
0.75HP
|
0.61
|
Astral-65563
|
16
|
3
|
1HP
|
0.78
|
Astral-65565
|
21.5
|
3
|
1.5HP
|
1.1
|
Astral-65567
|
26
|
3
|
2HP
|
1.5
|
Astral-65570
|
34
|
3
|
3HP
|
2.2
|

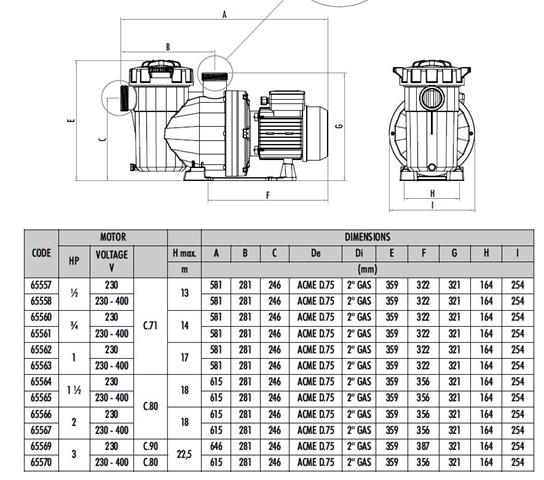

Astral Victoria Plus Pool Pump - Dimensions Chart
Downloads
Single Phase Pump Performance Charts
Three Phase Pump Performance Charts
