Shurflo Trail King Caravan Motorhome Pressurised Water Pump
- SKU:
- STK
- Availability:
- The Shurflo Trail King Water Pump is sent on a next working day carrier!
- Shipping (T&Cs Apply):

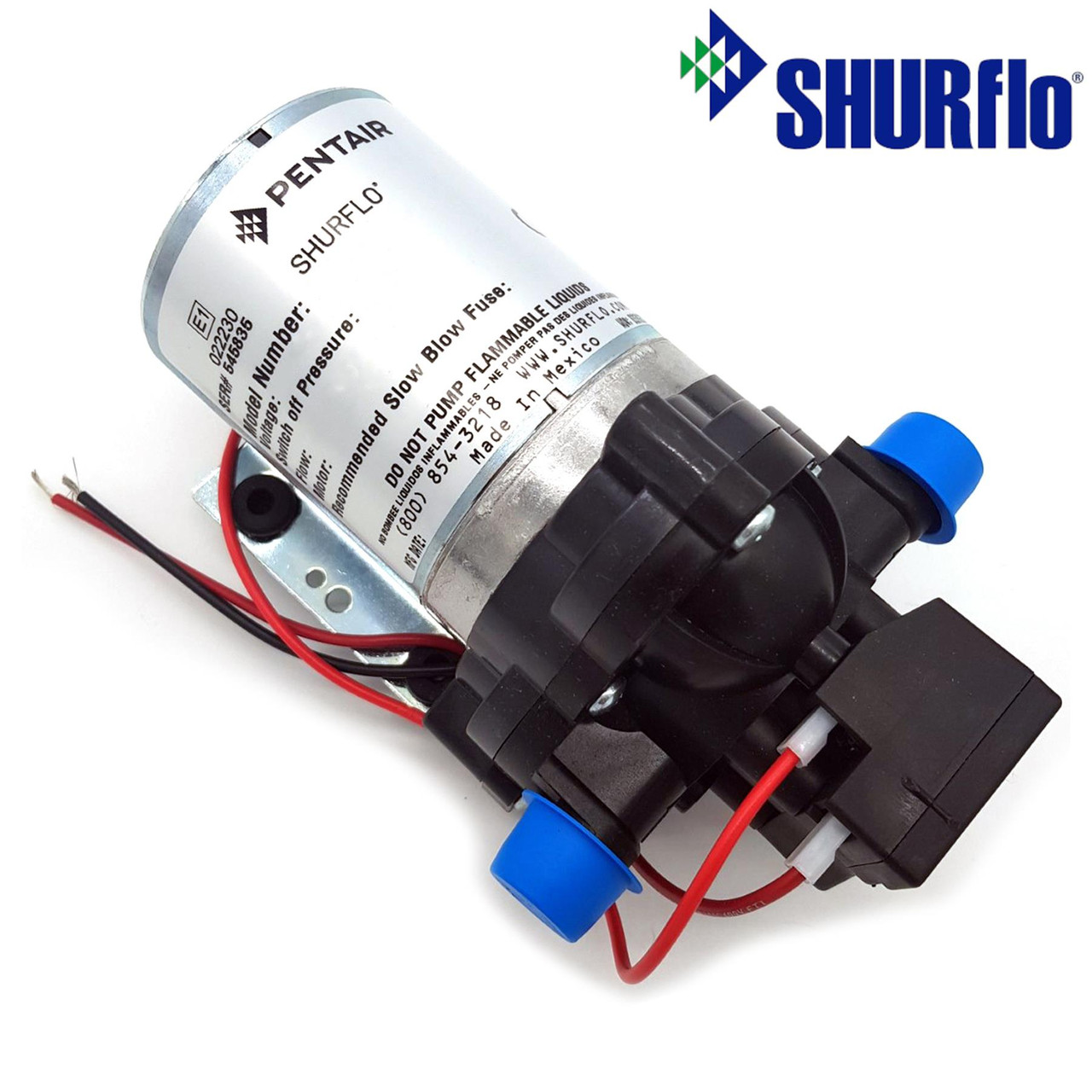

Shurflo Trail King Water Pump
The Shurflo Trail King Water Pump is an efficient and robust 12v pressurised fresh water pump suitable for use in caravans and motorhomes. Fully automatic, it is energy efficient and can even run dry without damage.
Well designed features
Featuring an automatic triple diaphragm, it is a self-priming pump with an integral pressure switch and low amp draw, which is capable of running dry without damage.
Quiet running
The Shurflo caravan and motorhome water pump is quiet to run and therefore operates unobtrusively. Other features include an internal circuit breaker within the motor for overload protection, as well as a robust die cast alloy lower housing with twin ball bearing drive.
Connectors and pipes
The Shurflo Trail King is supplied with one angled hose connector and one straight hose connector to fit a 12mm diameter flexible hose. Note: You will need to order the length of 12mm water pipe that you require to go with this Shurflo pump by simply clicking here.
All Shurflo Trail King Pumps are water tested by Shurlfo in their factory prior to shipping. Some residual water may be present during installation. This is not a fault or sign of previous use.
Want a steady/smooth flow? Add an expansion tank to your order
Shurflo Trail King 7
| Trail King 7 12V/1.4Bar |
Trail King 7 12V/2Bar |
|
| Model Numbers OEM/Aftermarket |
2095-204-412 |
2095-204-413 |
| Voltage |
12 VDC |
12 VDC |
| Flow Rate GPM (LPM) |
1.8 GPM (7 LPM) |
1.8 GPM (7 LPM) |
| Amps (Max) |
4.5 |
10 |
| Shut Off Pressure |
20 PSI (1.4 Bar) |
30 PSI (2.0 Bar) |
Shurflo Trail King 10
| Trail King 10 12V/2Bar |
Trail King 10 12V/3.1Bar |
Trail King 10 24V/2Bar | |
| Model Numbers OEM/Aftermarket |
2095-403-443 |
2095-403-444 |
2095-473-443 |
| Voltage |
12 VDC |
12 VDC |
24 VDC |
| Flow Rate GPM (LPM) |
2.6 GPM (10 LPM) |
2.6 GPM (10 LPM) |
2.6 GPM (10 LPM) |
| Amps (Max) |
10 |
10 |
10 |
| Shut Off Pressure |
30 PSI (2.0 Bar) |
45 PSI (3.1 Bar) |
30 PSI (2.0Bar) |
Installation and Operation Manual:
Shurflo 12v/10.6/30psi datasheet:
Shurflo 12v/10.6/45psi datasheet:
Technical Specifications:
